Applications

Suitable material

Cutting a wide variety of metal plates, tubes, mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, a variety of alloy paltes, rare metal and other materials cutting.

Application industry

Industry of kitchen ware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc.

Features

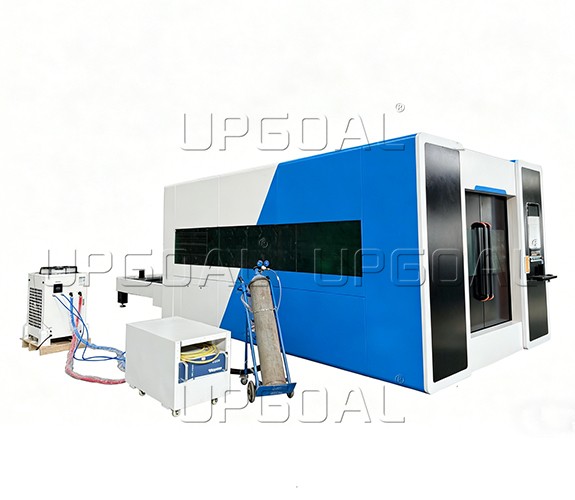

1. With full enclosed protective case, to protect the user's body and make the work safe,  the smoke produced by cutting can be

filtrated inside, its non-polluting and environmentally friendly. With monitor camrea, real-time monitoring of working status, safety

and improve working efficient.

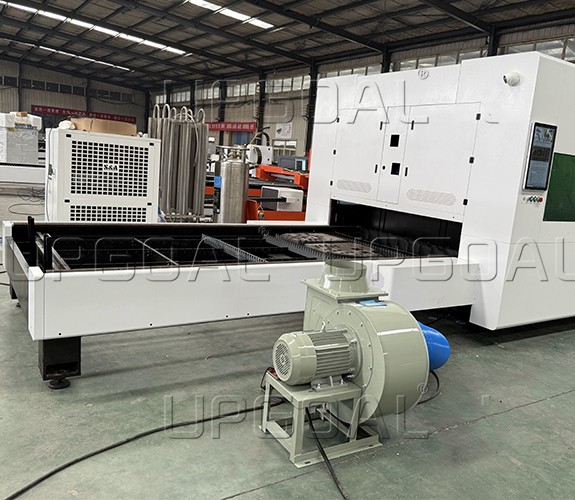

Match with filter cartridge dust collector ,during the laser cutting machine using, can filtering a mass of gas & smoke which are

harmful to human health when cutting processing materials.

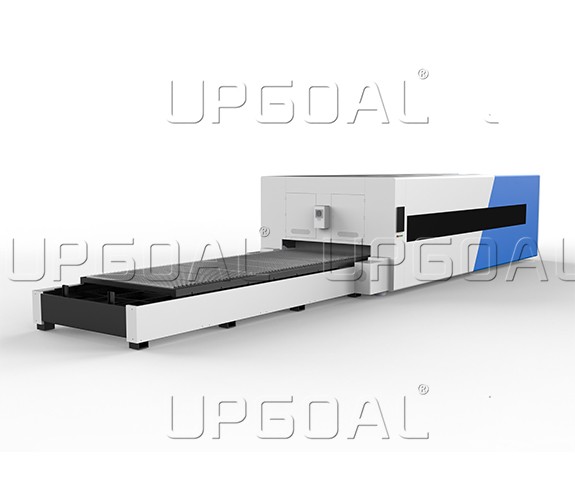

2. High-speed exchange table, adopts the latest parallel connection technology, and the software can switch with one click, making

the operation very convenient. Can complete the channel change within 16 seconds, greatly improving work efficiency and saving

labor costs.

3.The famous BOCI BLT 442 auto focusing fiber laser cutting head for high power, with optimized optical configuration and smooth

and efficient airflow design significantly improve cutting quality and efficiency.

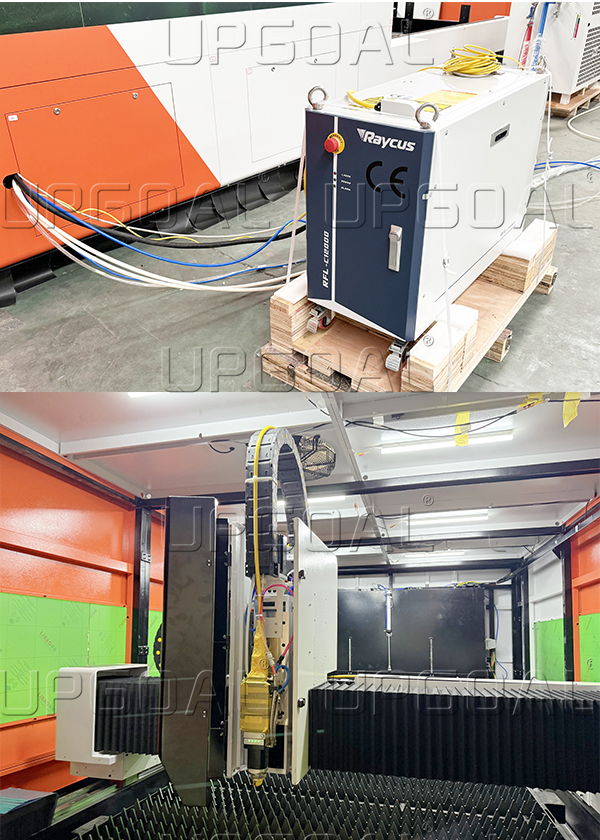

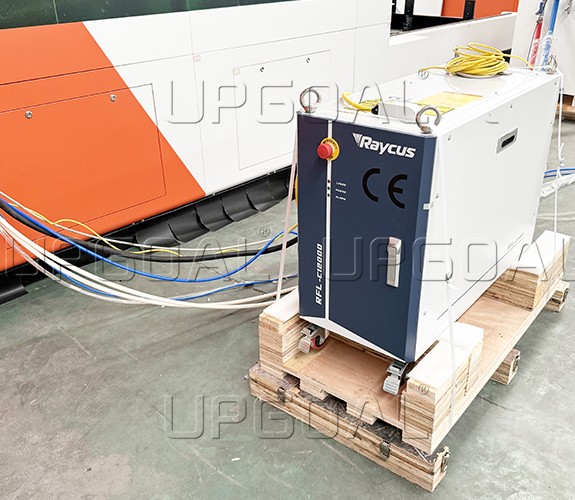

4.  Adopted stable RAYCUS 12000W fiber laser source wtih CE standard, photoelectric conversion rate is high, high beam quality.

It can meet the requirements of precision processing.

5. The FSCUT 6000E bus control control system is embedded with a rich memory of laser cutting setting references, flexible layout

designs and tool path editing, data import/export,bridging, coedge, beam compensation, curve smoothing, division, caombination,

automatic identification of exterior and interior modes and so on, compatible. Easy to use, rich in functions, stable and reliable.

6. Adopted YASKAWAJapan 1800W bus control servo motor and driver, and with SHIMPO reducer,  more accurate, It realizes

closed-loop control of position, rotating speed is more faster. With high strong anti-overload capability, and smooth operation at low

speed, no stepping operation similar to stepper motor when running at low speed.

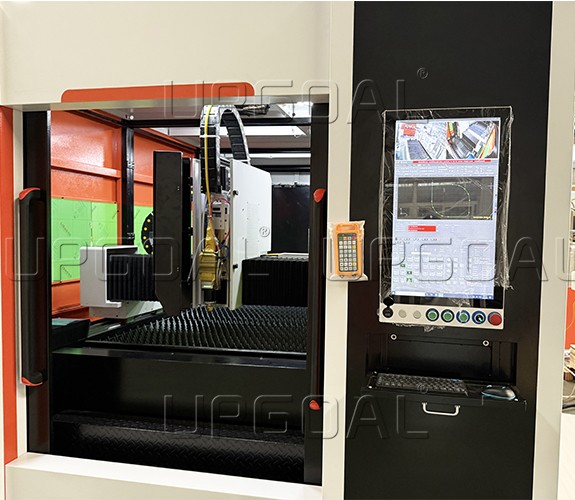

7. Industrial CPU with 2 displays, one fixed on the back of machine, convenient for observation during machine cutting

8. Stable S&A Teyu Industrial chiller CWFL-12000, ensuring fiber laser and laser head can be cooled quickly to ensure that the laser

machine has stable power even working at high temperature, high efficient and fast operation.

9. With voltage stabilizer, for stable cutting precision.

10.Gantry double-drive structure,with imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure

weight capacity,  high precision, smooth and steady running.Taiwan YYC rack&pinion transmission system for XY-axis,improves the

production efficiency.

11.High-rigidity heavy chassis, high strength, not easily deformed, good stability and strong tensile strength.reducing the vibration

generatedduring high-speed cutting greatly.

High-performance  aero space standards vaiation aluminium crossbeam with high hardness. Has the features like good toughness, lightweight, corrosion resistance, oxidation resistance and lowdensity, which greatly improve the processing speed.

12. Auto lubrication system

13.  Adopted SMC Japan proportional valve, improve cutting accuracy & speed.

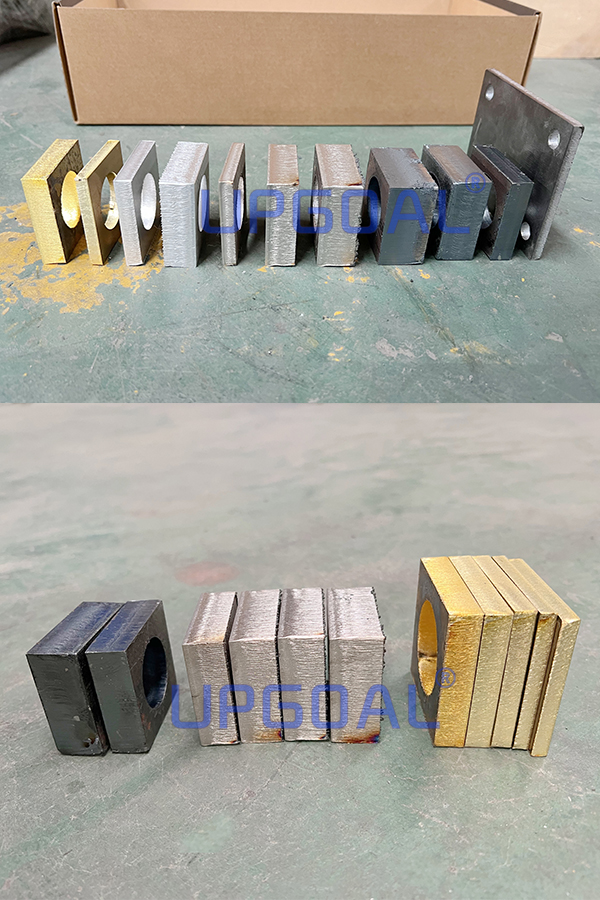

14.High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.

15. The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is

no mechanical deformation.

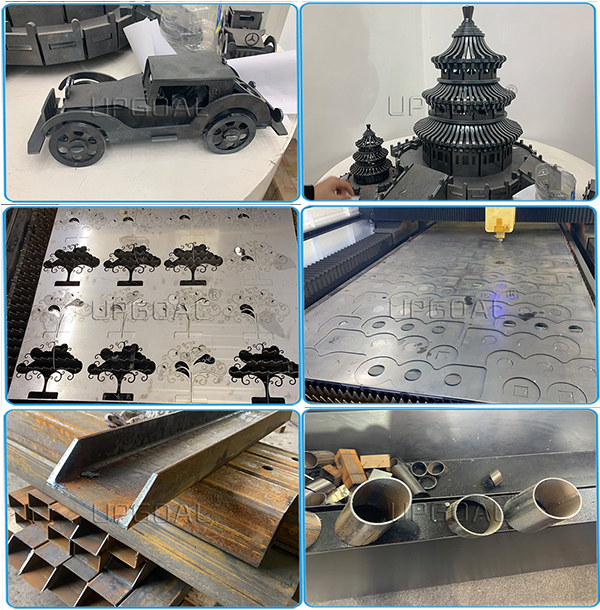

16.It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
